The SP-100 Planetary Mixer Series

SP-100 Mixer...  $1,702

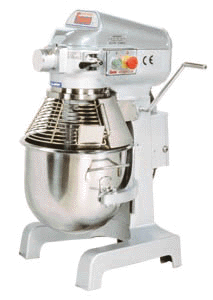

CLICK HERE
to see a larger picture of the SP-100.

Motor: 1/2 h.p., grease packed ball bearing, air-cooled, 110/60/1 (50Hz available)

Controls: The following controls are standard on all Spar Mixers: separate start and emergency stop buttons so operators can shut down the mixer immediately in an emergency situation, and thermal overload protection

Cord and Plug: 6 ft. flexible three wire cord and ground prong.

Transmission: Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by direct linkage to the motor drive shaft. This design yields high-torque mixing power.

Speeds: (Agitator rpm), (Hub rpm’s)
1. Low Speed 106, 59
2. Intermediate Speed 196, 110
3. High Speed 358, 201

Bowls and Agitators: Standard equipment includes a 20Qt. high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments: Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish: Top (transmission cover): metallic bronze epoxy enamel

Bottom: metallic gray epoxy enamel

Shipping Information:
N.W.       176lbs       (80kgs)
G.W.       220lbs       (100kgs)

Carton Size: Depth 24in.(60cm) Width 23in.(58cm) Height 37.8in.(96cm)

Cartons are affixed to an undersized skid (pallet), the weight and dimensions of this skid are not included above and may vary from shipment to shipment.
