The SP-30HI Planetary Mixer Series

SP-30HI Mixer...  $3,663

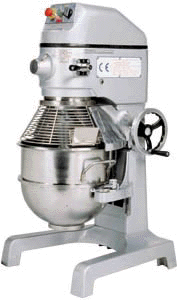

CLICK HERE
to see a larger picture of the SP-30HI.

Motor: 1 h.p. (.75kW), grease packed ball bearing, air-cooled, 115/60/1 (50Hz available)

Optional: 1 1/2 h.p. heavy duty compact pizza special 220/60/1

Controls: Spar Mixer controls are front-mounted to give easy access in cramped kitchen environments. The following controls are standard on all Spar Mixers: separate start and emergency stop buttons so operators can shut down the mixer immediately in an emergency situation, a 15-minute timer which shuts off the machine after set time has elapsed, and thermal overload protection

Cord and Plug: 6 ft. flexible three wire cord and ground prong.

Transmission: Heat-treated, hardened alloy, precision milled gears operate with planetary action. Gears are packed in a long-lasting, high pressure grease. Planetary gears are driven by an oversized cog-wheel, which is in turn driven by a cogged belt powered by the motor drive shaft. Cogged belt is a long-lasting, rugged fibre/rubber composite. This unique design yields high-torque mixing power while avoiding the high cost encountered repairing direct-drive transmission components.

Speeds: (Agitator rpm), (Slicer/Grinder rpm)
1. Low Speed 99, 69
2. Intermediate Speed 176, 123
3. High Speed 320, 224

Bowls and Agitators: Standard equipment includes a 31.7Qt. (30L) high quality stainless steel bowl, dough hook, flat beater, and whip. A sturdy hand lever on the body column raises and lowers the bowl as well as locking in place at the top and bottom positions.

Attachments: Standard is the No. 12 hub for powering a standard size vegetable slicer/cheese shredder and a standard size meat mincer/grinder.

Finish: Top (transmission cover): metallic bronze epoxy enamel

Bottom: metallic gray epoxy enamel

Shipping Information:
N.W.       396lbs       (180kgs)
G.W.       462lbs       (210kgs)

Carton Size: Depth 29in.(73cm) Width 29in.(73cm) Height 51in.(130cm)

Cartons are affixed to an undersized skid (pallet), the weight and dimensions of this skid are not included above and may vary from shipment to shipment.

For product information, please call

Joe and George Mills
Representing Olender Equipment

Call 1-800-356-2506 or email pizzaovens@aol.com
